Alternative Replacement of HVCA, EDI, High Voltage Diode,China Manufacturer Supply

China, October 22, 2020, ZEXPRWIRE, HVC supply high voltage diode as alternative replacement of High Voltage Diode from HVCA( Dean Technology) and EDI diodes (electronic devices inc) ,10kv , 20kv, 30kv, 40kv high voltage diode manufacturer.

Most of HVC Capacitor’s customer use high voltage ceramic capacitor and high voltage diode to build Voltage multiplier, (CASCADE COCKCROFT-WALTON VOLTAGE MULTIPLIER in high voltage generator) which is basic circuit for X-ray, CT and NDT machine.

In 2018, HVC Capacitor partner with local famous HV diode producer to win quite a lot HV projects. Customers also approval HVC brand Diode. In this market, most clients using HVCA brand and EDI brand from U.S.A, and more famous names like Japanese Origin and Sanken.All of above is not world-class renown brands like Vishay, TDK, Murata. Since this is specialized market and not massive product market like home electronics and consumer electronics.HVC HV diode widely used in aerospace, military weapons, mote vehicles, medical X-ray machine, electrostatic dedustings, scientific research institute.

HVC HV diode peak working revere voltage(VRWM) from 1kv to 30kv, high voltage silicon stack voltage up to 500kv,Average Forward Current( IF(AV)) from 10MA to 20A, Reverse Recovery Time(trr) from 35ns to 2000ns,working frequency 50HZ to 200kHZ.

HVC high voltage diode with the following advantage feature:

1) Low leakage current, high surge, and high current shock resistance

2) High reverse voltage, low forward current and avalanche breakdown protection.

3) Fast response, high efficiency and ultra-fast recover time.

4) High heat resistance, PN junction temperature up to 175℃

Above mention HVCA brand and EDI both have production base in Northeastern and Southeastern China.HVC brand high voltage diode with the same quality standard to Chinese producer and already gaining more and more replacement project in Europe and American market

Following is frequently search HV diode part number and HVC provides all alternative and replacement item to them.

1)2CL2FL, 2CL2FM, 2CL2FP,HV diode in 15kv to 30kv ,current from 100ma to 140ma. This is original HVCA and EDI part number, typical application like X-ray power supply, laser, voltage multiplier circuit, microwave transmission power supply,oil fume purification equipment,net dust removal equipment.HVC diode offer alternative model.

2)VT1500, RVT1000, RVT1200, RVT1500, HVRT300, HVRT120, HVRT150, HVRT200, this original HVCA item,major application is medical device, laser power supply and dust removal.CRT screen. HVC offer alternative item to above.

3)2CL77,voltage in 20kv and 5ma current, and similar model 2CL70, 2CL71, 2CL72, 2CL75, 2CL79, they are high voltage but low current diode, very popular and use in the market.EDI part number, sure HVC offer replacement and alternative to above item.

4)UX-F0B,UX-C2B, UX-F15B, UX-F30B, UX-F2CL15,this UX-FOB is very popular use in high voltage X-ray machine.UX-FOB original from Japanese Sanken, widely use in high frequency high voltage circuit.Datasheet show VRRM 8kv, “UX” means ultra fast recovery time to 40ns, This means high repsond and high efficiency for X-ray generator. this model withstands high frequency up to 300khz, surge current 20 Ampere.from our experience ,UX-FOB diode can be found from famous medical X ray client Konica Minolta (Mexico) ,VMI (Brazil) and CPI(Canada) ‘s (DR)Digital Radiography and many other copy PCB board from famous name. So the usage of UX-FOB is hugh. This model original produce by Japanese brand Sanken (SK), and later SK stop production,and American diode company HVCA (Dean Technology) start to produce it and market it in same part number “UX-F0B”. It is most popular model design-in to world famous (high end) X-ray power source manufacturer’s PCB board, due to very fast recovery time and high frequency (300khz) feature. (This is very similar to most popular Murata high voltage ceramic capacitor (15kv 102 ZM materaial, DHR4E4C102K2FB) also used in high end X-ray power source.) , DHR4E4C102K2FB market demand can be one million pcs globally. since this UX-FOB model is super hot,some less famous Japanese component

manufacturer even produce replacement model call “MD8CP5” . HVC also offer alternative and replacement model to UX-FOB, HVC model call HVD-SL513G, which provide same 40ns respond and 13kv reverse voltage, higher voltage withstand can making component more reliable and customer can series connection less diode to achieve given value,and finally cost down to general PCB board.

UX-2CB is Sanken’s hv diode,8kv voltage and 500ma current,widely use microwave oven, typical model is Panasonic Siemens, Bosch GE ‘s Microwave Oven.We found HVCA also produce same name

model before, but now already disappear from their catalogue.HVC offer alternative for HV diode UX-C2B with competitive cost.

5) HVC also offer alternative replacement for following hot hv diode model which use in more general application,like:


——–Mainly used in electric mosquito swatter, ozone generator,high voltage power

supply,lightning protection equipment,communication grid.

RFC4K, RFC3K, R3000, R4000, R5000, R3000F, R4000F, R5000F, T2060, T0504

——–Mainly used in air purifier,TV set,anion generator, ozone power supply, copy

machine,medical and computer cathode ray tube,laser.

2CL70, 2CL71, 2CL72, 2CL73, 2CL74, 2CL75, 2CL76, 2CL77, 2CL4, 2CL6, 2CL8, 2CL10, 2CL12, 2CL14, 2CL16, 2CL20, 2CL703, 2CL704, T71A, T72A, T73A, T74A, T75A, T77

—-Mainly used in small household appliances such as microwave oven,power supply,hair

dryer,dehumidifier,as well as high-voltage rectification in systems such as copier, laser,

neon light power supply.
2CL70, TG3508, TS01, UX-C2B, T3512H, T4512H, T3509, T4509, 2CL3512H, 2CL4512H, HVM12, HVM15, 2CL103, 2CL104, HVRT080, HVRT120, HVRT150, HVRT300, T0504, 2CLG3512, FR02-60, CL01-12

—-Mainly used in X-ray power supply, laser, voltage multiplier circuit, microwave emission

power supply, fume purification equipment, electrostatic precipitate.2CL2FF, 2CL2FG, 2CL2FH, 2CL2FJ, 2CL2FK, 2CL2FL, 2CL2FM, 2CL2FP, HV37-08, HV37-20, BR2,BR4, CL, BR, HVRT Series, HVRL Series, TG1015, SHV049, 2CLG1015, DD2000, JB99T, HVRT200

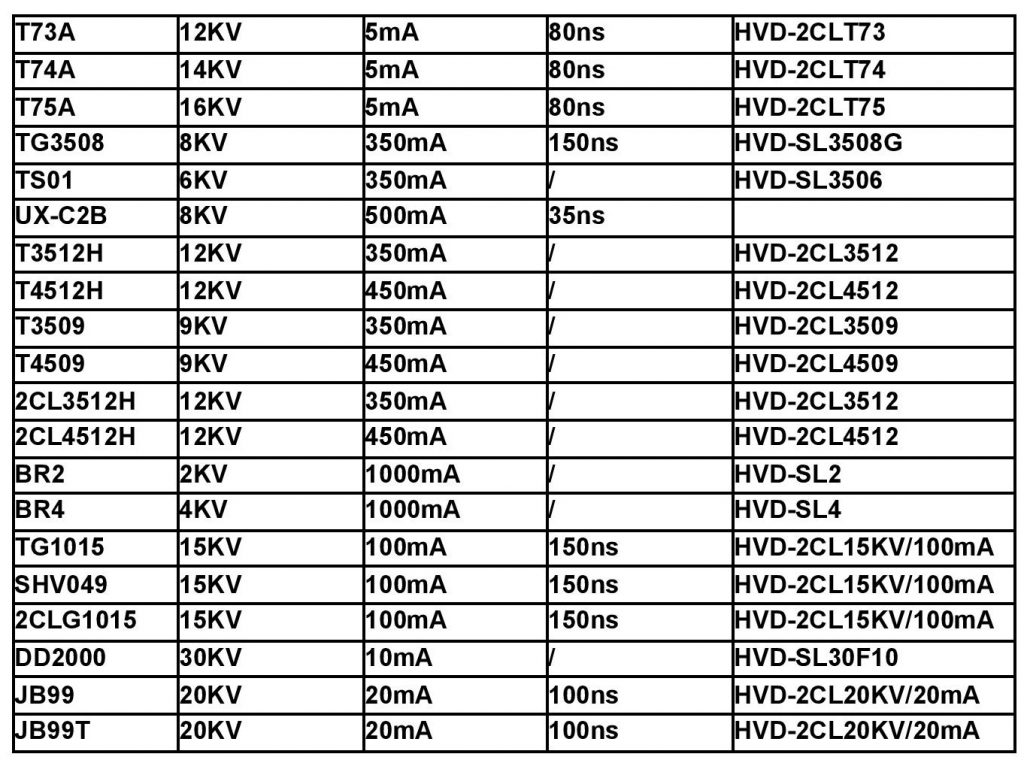

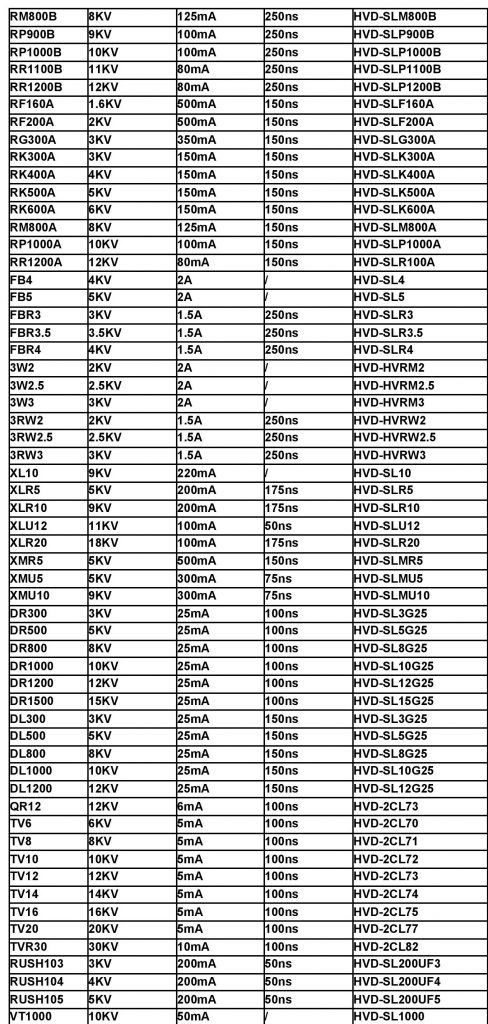

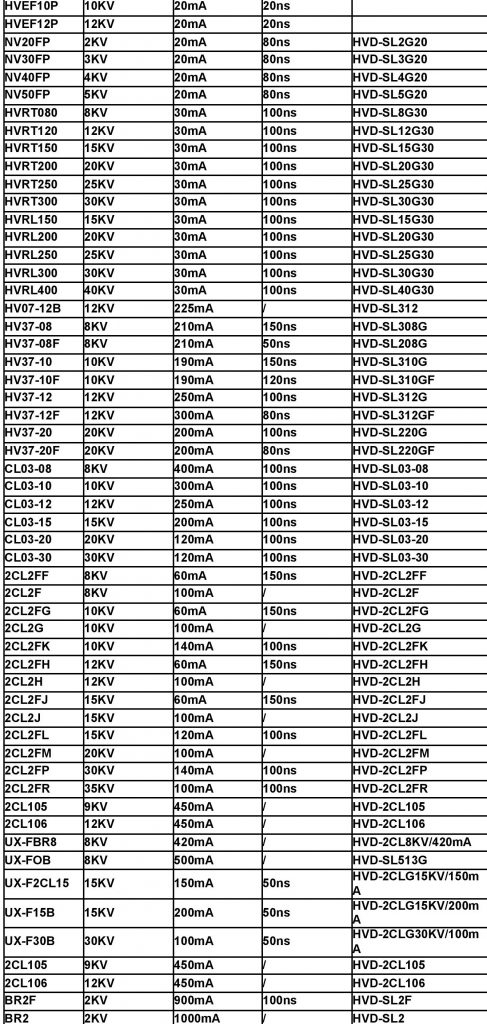

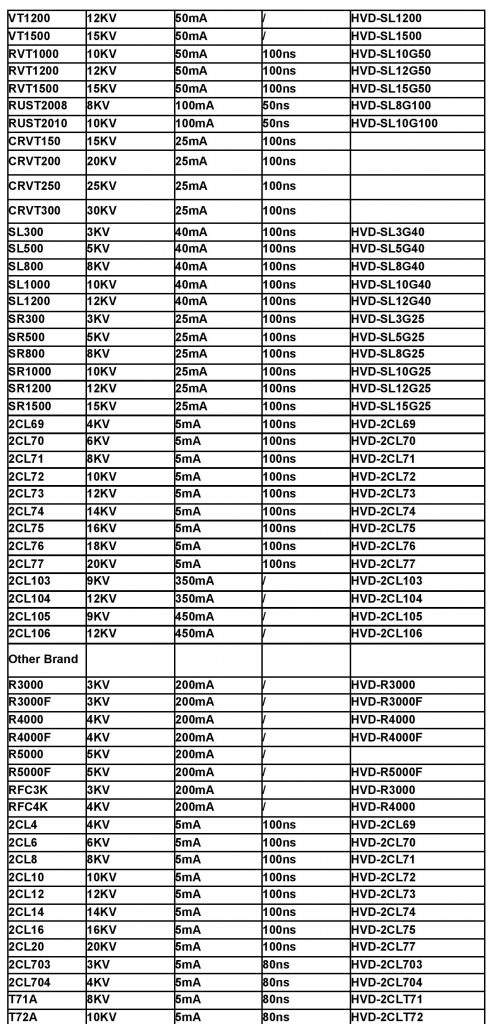

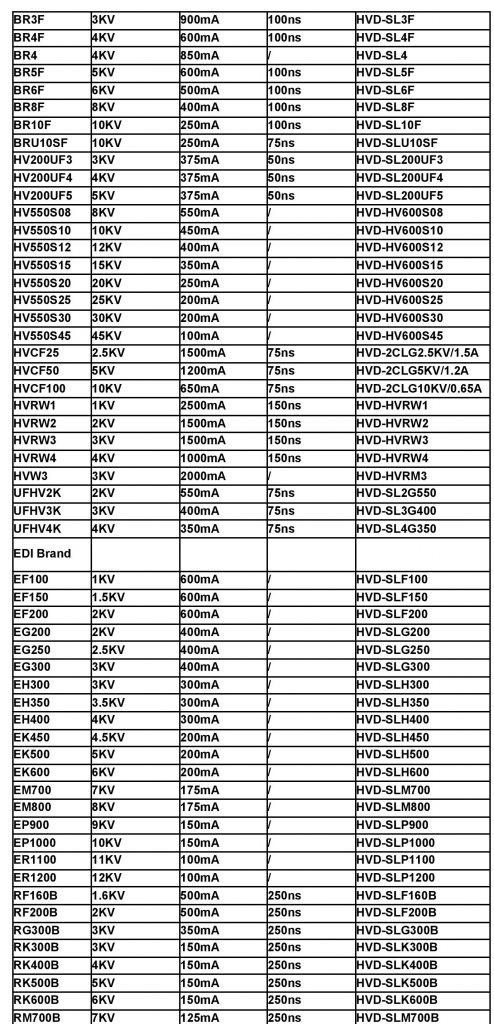

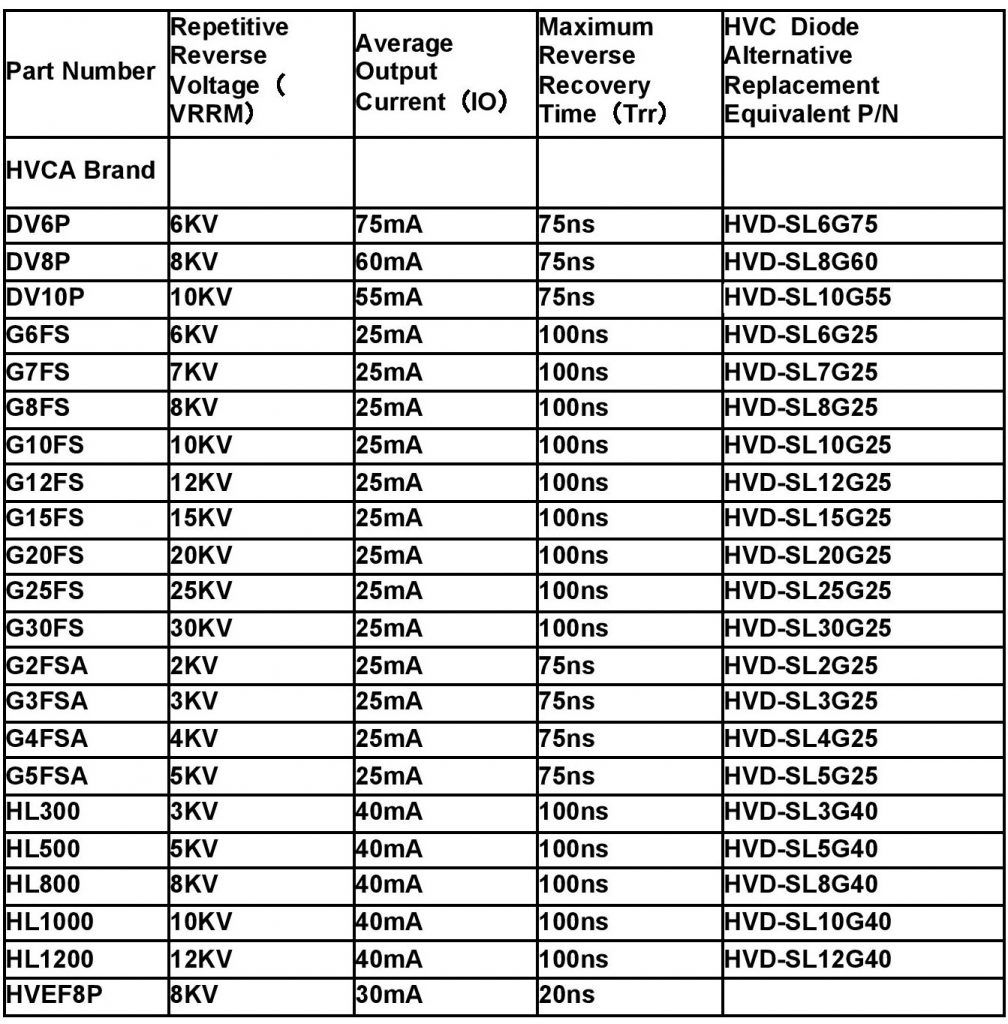

Following frequently search high voltage diode part number from HVCA, EDI ,SANKEN…
HVC offer alternative replacement item for all.

Know more HVC diode check following links:

https://www.hv-caps.com/High_Voltage_Diode/2019/1212/3343.html

https://www.hv-caps.com/High_Voltage_Diode/2019/1211/3342.html
